Time for an overhaul of my 1.9 '98 BMW Z3 Individual

It’s quite satisfying bolting up all refurbished and new stuff.

well... Day 3 of my week off, and a bit of a funny day as I couldn't really get going. Had some things to do around the garden and by the time I'd finished I couldn't really get into the car (and no... it's not locked.. =)) )

what I did do was tidy up, stuck in a bunch of those square clips for the 8mm hex screws (like the ones for the jack pads...

talking of which... I cleaned up the jack pads and rubbed down the screws with a scotch pad and gave them a coat of gloss black.... I know I know...but they were just staring at me all rusty n all.




However... I did do something useful.. I recently bought a motorbike jack, as I thought it would be far easier than my current solution.






Then it was a case of transferring it from my wheelie table using a combination of lifting and two jacks



Got it high enough to slide the table jack under and Robert is your father's brother....



If I can get an impact wrench on the turning screw (think it's about a 22mm socket), then lifting it should be a doddle... *cough*

I've ordered a new brake hose for the front offside and thing really holding me up finishing the front is that bloody missing nut from the lower control arm. Suppose I could assemble everything and then just fit it when it turns up..

well today is day 4 of my week off to get the car back....

went to torque up the hub nuts to the recommended torque of 288nm, and realised my torque wrench only goes to 213nm. So I'll have to treat myself to a new torque wrench... don't worry, I won't be driving on that...




I temporarily fitted my zinc plated grub screws,



et voila




I dug out the wheel bolts from various orifices and established they were really grubby



First hit them on the brass wire wheel.... then took a bit of Maguire's polish to them....



On with the jack pads... so you know what this means don't you..... we're lowering the car !!! aaaarggh !!



There was nothing remotely sketchy about my rig.... on a slope... when the car started to wobble on two opposing jack stands.....not at all a squeaky bum time.. noooooo



After much wibbly wobbly, I managed to get to a point where I could get the front wheels on.... at least that'll stop the wobble !!



I haven't fitted the front calipers yet, firstly I'm still waiting on that lower control arm nut and secondly, I dug out the old pads with plenty of meat on them, and one is missing...... somewhere somehow it's on some desert island in my garage sipping cocktails and watching cricket

The last thing of the day was delivery of the Diff oil... got it from R44 Performance.... and they gave me some sweeties !.. how lovely



So we're nearly there in terms of mechanicals, still need to :

  • Install the rear subframe
  • Install front calipers
  • Scuff up and clear coat all the body panels (currently in the attic)
  • redo the clear coat on the boot lid and wings
  • fit said body panels
  • prep and paint my new offside sill
  • check all the brake lines and connections
  • fit all the "furniture". Kick plates, trim etc...
  • refit the polished lights
  • fit the replacement offside door mirror
  • Wax the sills !

Then worry about starting the engine for the first time in nearly three years !

Last edited:
If you haven't already done it, you may find it easier to fit the handbrake cables before you fit the rear beam. Although if the exhaust and propshaft are off, it probably won't make any difference.

Pingu said:
If you haven't already done it, you may find it easier to fit the handbrake cables before you fit the rear beam. Although if the exhaust and propshaft are off, it probably won't make any difference.
Click to expand...
@Pingu thanks mate.... the cables are already connected to the shoes, so they're sitting on top of the subframe... I'm hoping, with my motorbike jack, I can lift and stop at certain points, feed the cables through as I go....and yes rear box is disconnected but propshaft tied up.

Hi Matt,

Sorted your torque wrench yet …
You can always borrow this
( fits any 1/2 drive bar and I have the socket if you need it )
I got it to do mine .



Drop off later this evening when the traffic has died down a bit. :thumbsup:

Got the 1-9 back today with a new clutch fitted … so would be rude not to try it out i. the evening sun :whistle:

Another 6 hours in the hoist..... but... the subframe is in!

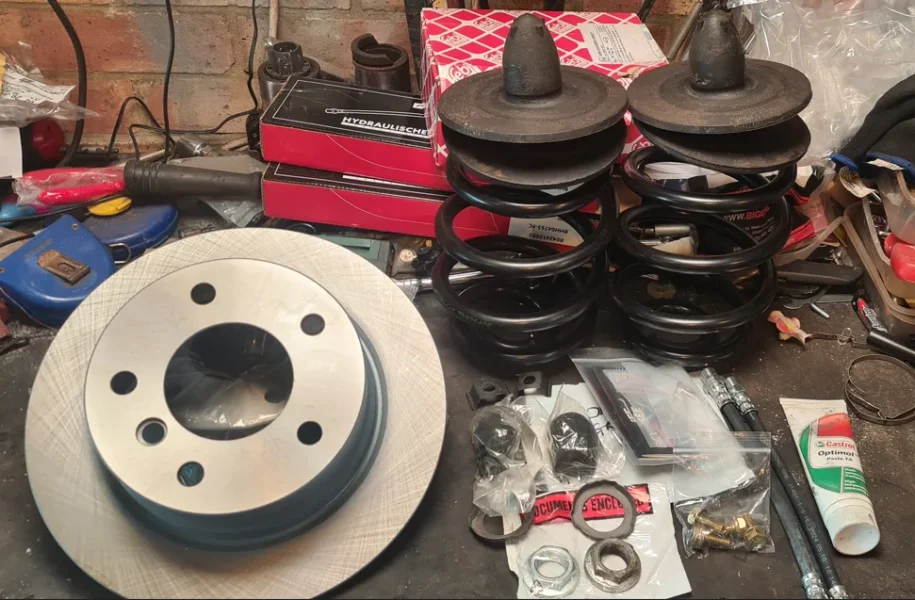

first was to gather my war chest of parts I was going to need for the day..



tried out the motorbike lift... and.... it was worth it's weight in gold.... I thoroughly recommend getting one if you're about to embark on a rear end refresh



having a coffee while assembling the hoses and brake lines... very civilised being able to do it on a stool..

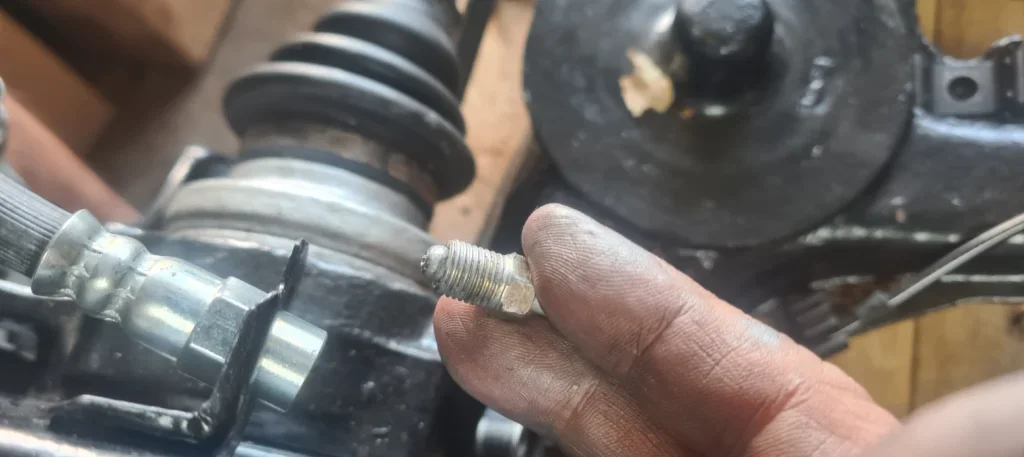

Then I hit my first gremlin... one of the brake flares was too shallow and even tightened fully was rattling in the union



but fear not, thanks to the hand held brake flare tool, redoing it was a doddle



There, much better !!



time to assemble everything

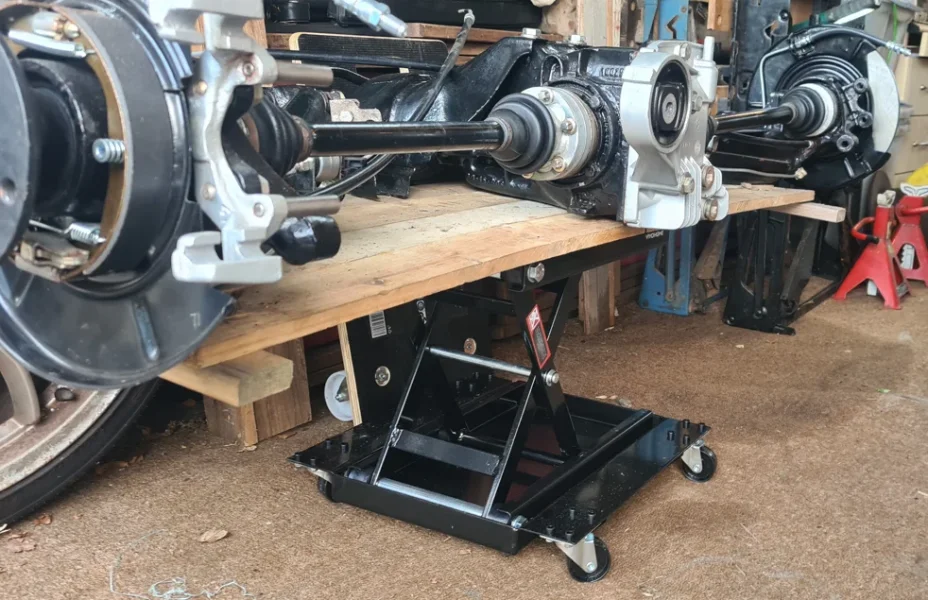

a moment of madness came over me and thought... let's do it now.... so wheeled it out under the car



I was having a bit of trouble with the assembly tipping slightly backward on the homemade jig.. so used a trolley jack to GENTLY support the diff



I noticed the prop shaft kept catching on the subframe but the great thing about the lift was the control you get....I managed to wiggle the prop shaft and Diff enough to get one prop shaft bolt into the diff which stopped it catching

and we're in !



Yes those shocks are being replaced !!



I'll torque everything down tomorrow and connect everything up...


Attachments

  • 1778260410856.webp
    121 KB · Views: 158
  • 1778260506662.webp
    138.8 KB · Views: 161
  • 1778260798444.webp
    35.8 KB · Views: 214
Last edited:
I wouldn't write the rear dampers off just yet. They're probably still fine, just a bit rusty.

As far as I'm concerned, Boge Sachs make the best dampers. ZF group, made in Europe and capable of big mileages.
I've had and heard of too many faulty Bilstein B4's (knocking over bumps), KYB's are fit only for instant recycling (faulty/leaking/too stiff/don't fit) and I lump them in with the Chinese eBay crap. Monroe aren't bad at all - no complaints. GSF's own brand stuff has been discontinued as they couldn't compete with the eBay shyte - a pity as they weren't bad. I don't rate TRW much either. I had a pair absolutely p*ss all their fluid out in less than a year.

If those dampers still require a good effort to compress and rebound, I'd just clean them up and prime/paint them satin black. They were made to BMW's exact specification unlike everything else.

Andyboy said:
I wouldn't write the rear dampers off just yet. They're probably still fine, just a bit rusty.

As far as I'm concerned, Boge Sachs make the best dampers. ZF group, made in Europe and capable of big mileages.
I've had and heard of too many faulty Bilstein B4's (knocking over bumps), KYB's are fit only for instant recycling (faulty/leaking/too stiff/don't fit) and I lump them in with the Chinese eBay crap. Monroe aren't bad at all - no complaints. GSF's own brand stuff has been discontinued as they couldn't compete with the eBay shyte - a pity as they weren't bad. I don't rate TRW much either. I had a pair absolutely p*ss all their fluid out in less than a year.

If those dampers still require a good effort to compress and rebound, I'd just clean them up and prime/paint them satin black. They were made to BMW's exact specification unlike everything else.
Click to expand...
thanks Andy...but they are shot...I can push them up and they'd stay there..the top hats have rusted out. The only reason they're still there is that I couldn't undo the nuts while the car was in the air, or else it'll be like the end scene from the Italian Job.."don'
Andyboy said:
I wouldn't write the rear dampers off just yet. They're probably still fine, just a bit rusty.

As far as I'm concerned, Boge Sachs make the best dampers. ZF group, made in Europe and capable of big mileages.
I've had and heard of too many faulty Bilstein B4's (knocking over bumps), KYB's are fit only for instant recycling (faulty/leaking/too stiff/don't fit) and I lump them in with the Chinese eBay crap. Monroe aren't bad at all - no complaints. GSF's own brand stuff has been discontinued as they couldn't compete with the eBay shyte - a pity as they weren't bad. I don't rate TRW much either. I had a pair absolutely p*ss all their fluid out in less than a year.

If those dampers still require a good effort to compress and rebound, I'd just clean them up and prime/paint them satin black. They were made to BMW's exact specification unlike everything else.
Click to expand...
Thanks Andy, but they're shot..I can push them up and they'll stay there. The only reason they're still on the car is because the rear end was up in the air and I can't remove them like that or else it'll be like the end scene of The Italian Job... "no lads move further back...further back!".. I've got new Sachs ones to replace them with

Well here were are... another weekend and we're making rapid progress now.

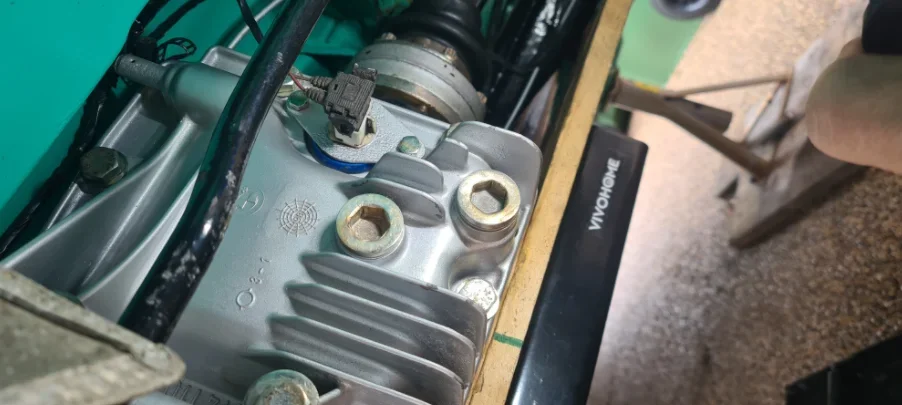

Had to tidy up that speed sensor with a hit of Hammerite Silver and zinced bolts...too much?... no ?
